Home » Linear Actuator (High Accuracy Ball Screw) (500 mm Stroke)
THK

Linear Actuator (High Accuracy Ball Screw) (500 mm Stroke)

Only 2 left
$1,629.00
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Item # KR3310A-0500-H0-01A0

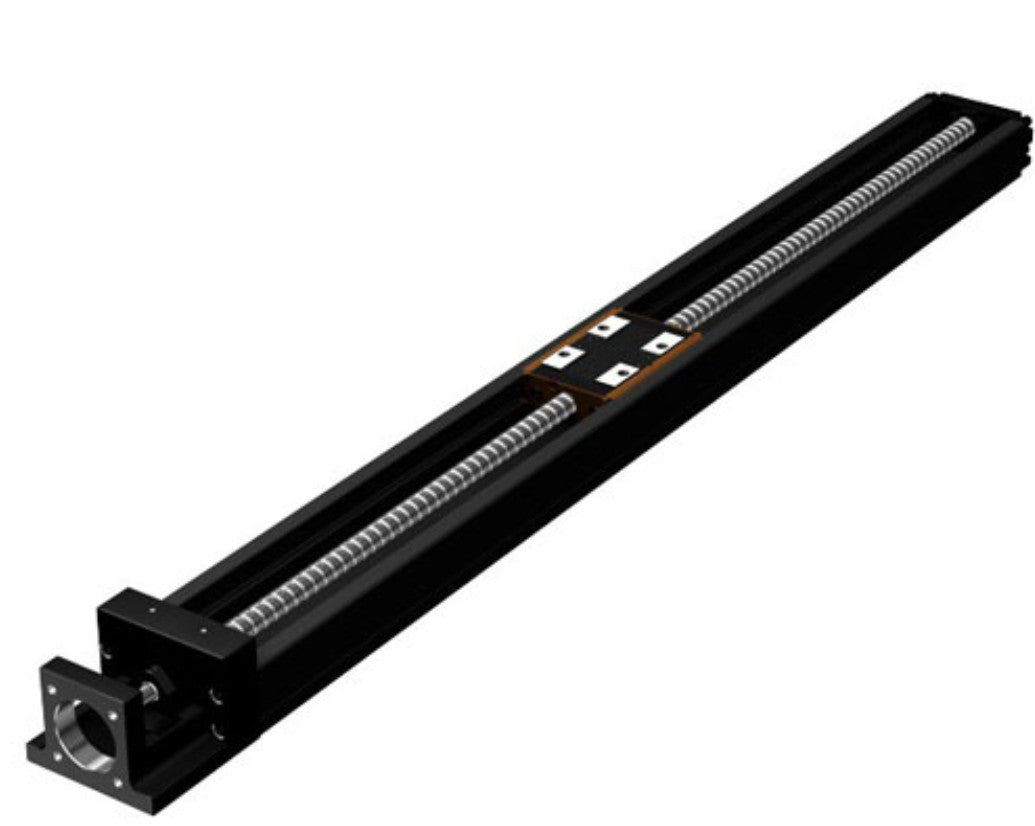

The THK KR Series linear slide consists of a highly rigid outer rail with a U-shaped cross section, LM Guide units on both sides and a Ball Screw unit in the center.

  • Single, Long Block Type
  • High Rigidity, Compact and Space Saving
  • Motor, Driver, Coupling, Flange, Sensors available
  • Manufacturer: THK
  • Series: KR33 LM Guide Actuator
  • Drive method: Ball screw
  • Stroke length: 500 mm
  • Lead: 10 mm
  • Accuracy grade: High accuracy
  • Cover: No cover
  • Frame size: approx. 33 × 60 mm rail frame
